Cell-Free Circulating DNA Extraction Kit From Plasma

[ Intended use ]

• A new technology of Double-Layer Column is used to extract cf-DNA from plasma.

• The kit extracts circulating cell-free DNA from up to 20 mL plasma.

• Swift procedure done in 5 min.

[ Specification ]

• Large volume:    Up to 20 mL plasma

• Application: Directly used for NGS and PCR.

• cfDNA size:       80-170 bp

• Recovery rate:   >90%

• Capacity: 20 μg

• No genomic DNA contamination from lysed white cells

• Convenience: No proteinase needed

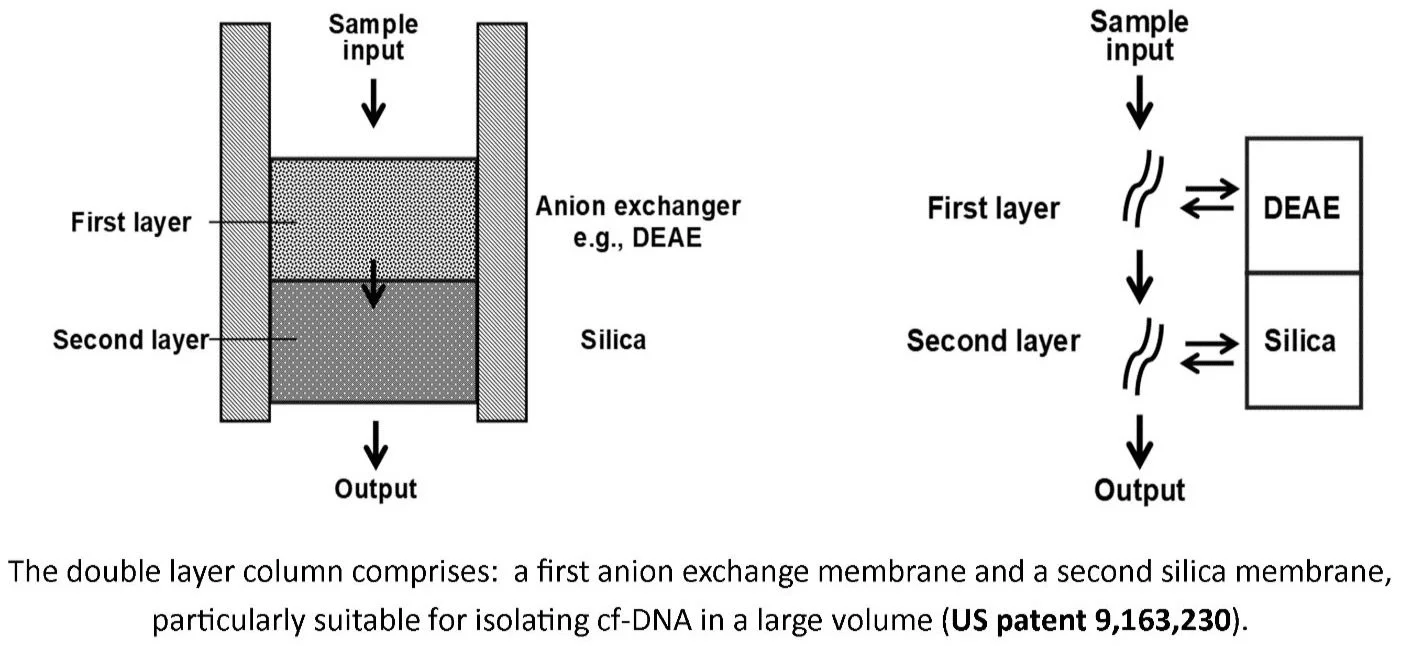

[Structure and Mechanism]

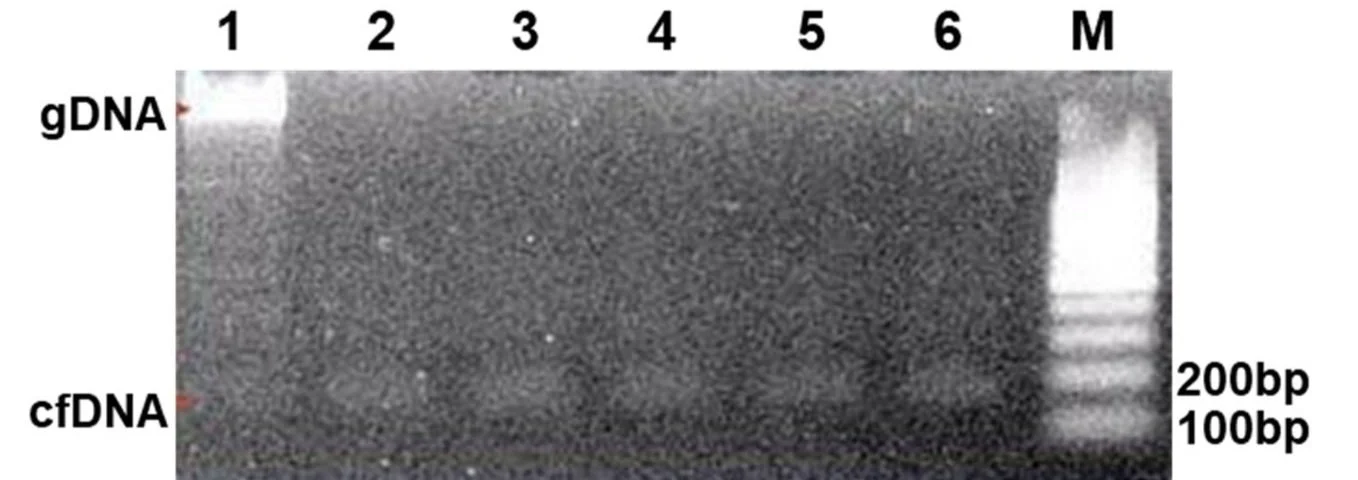

[Comparison of cf-DNA extraction with Q company]

Lane 1 is from Q company. Lanes 2-6 are from this company. Large-sized gDNA and cf-DNA are shown on the left side

[Three Products]

• Human plasma cf-DNA extraction kit (Midi 5mL)

• Human plasma cf-DNA extraction kit (Mini 0.7mL)
